IDEAL Electrical Wire Armour Tapes
When Performance Matters, Count On Wire Armour Electrical Tapes To Get The Job Done.
When was the last time you looked at your tape? Whether you are working on an installation or a minor repair, electrical tapes play a significant role on the project. Wire Armour offers a wide variety of vinyl tapes, rubber mastics, corrosion protection, and more to best suit your needs. If you are looking for quality, Wire Armour is the way to go, providing elongation, adhesion and elasticity for the toughest and most challenging environments.
As the Electrician’s Champion, IDEAL® Electrical provides the performance and value you need in electrical tape. Next time you look at your tape, look for Wire Armour, the tape you need.
Vinyl Electrical Tape
Premium Professional
- 3/4” x 66” x 7 mil thickness
- Primary insulation up to 600V
- Cold and weather resistant – rated up to 105°C
- Great elasticity
- Flame retardant
- Highly resistant to UV, water, oil, acids, alkalis and corrosive chemicals
- Nine colours and black available for marking and phase identification
General Purpose
- 3/4” x 66’ x 7 mil thickness
- Primary insulation up to 600V
- Rated up to 80°C
- Good elasticity
- Flame retardant
- Affordable solution
- Nine colours and black available for marking and phase identification
Heavy Duty 8.5 mil
- All weather, heavy-duty, vinyl tape that provides a thicker layer for added protection.
- 8.5 mil thickness
- Cold and weather resistant to -18°C
- High dielectric strength and elasticity
Contractor Pro
- Mid-grade vinyl tape for all kinds of mechanical and electrical applications.
- 7 mil thickness
- Weather resistant to -10°C
- High dielectric strength and elasticity
- Flame retardant
Special Uses Tape
Linerless Rubber Tape
- Primary insulation up to 69kV
- Linerless ethylene rubber
- Excellent conformability to complex shapes
- Moisture, corrosion, and chemical resistant
- High thermal conductivity allowing heat to dissipate from joint
- Overload temperature: 266°F
- Elongation: 890%
Rubber Mastic Tape
- Primary insulation up to 2kV
- Insulating and moisture sealing splices and terminations
- Moisture, corrosion and chemical resistant
- Suitable for direct burial and overhead applications
- Overload Temperature: 266°F
- Elongation: 890%
Vinyl Mastic Pads
- Primary insulation up to 1kV
- Superior adhesion and dielectric strength
- Sealing and insulating for buried, submerged or overhead electrical connections
- Resistant to UV rays and impermeable to ozone, water, soil, dirt and corrosive chemicals
- Overload temperature: 266°F
- Package of 10

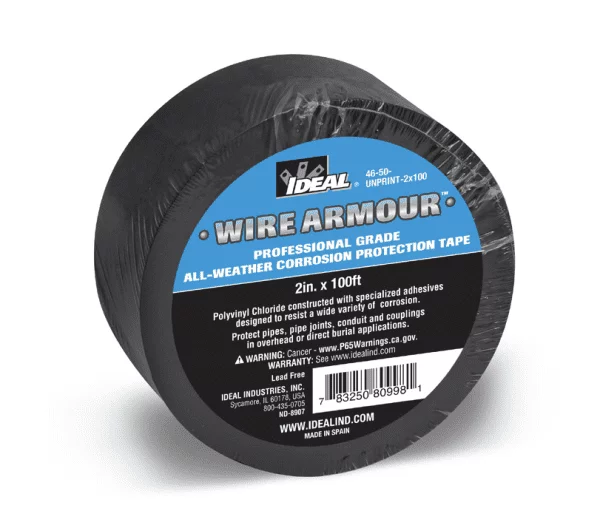

Corrosion Protection Tape
- Protects pipe, joints, conduit and couplings in overhead or direct burial applications
- Highly resistant to sun, water, oil, acids, alkalies and corrosive chemicals
- Bacteria and fungus resistant
- Pressure sensitive
- Thickness: 10mil

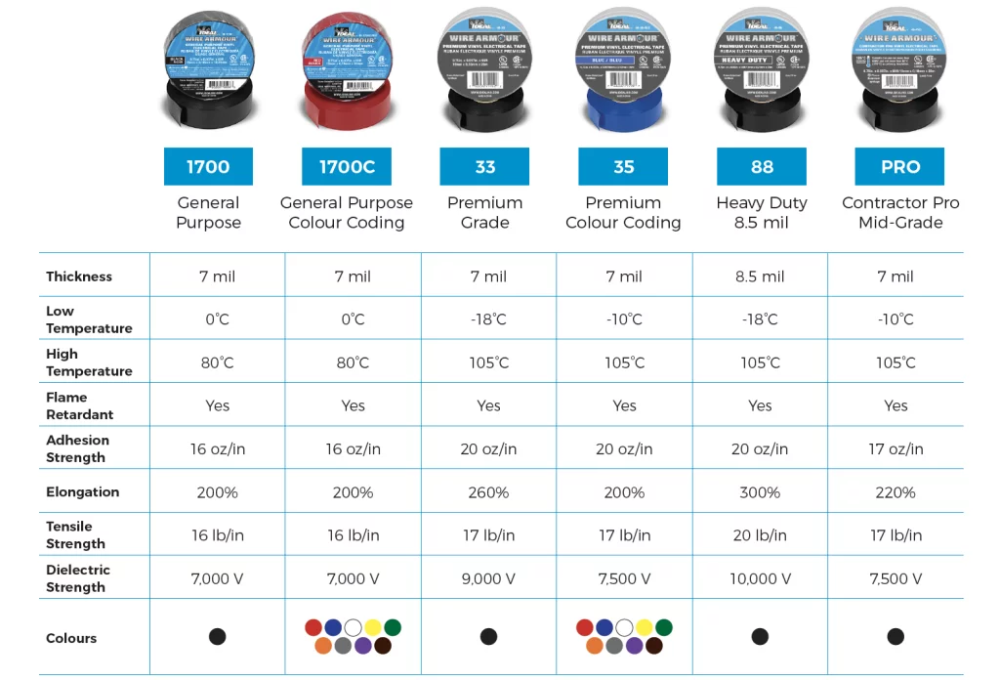

With so many options available, making the right choice for your application can be difficult. Use the below selection guide to quickly compare and contrast our offering and determine which option is best suited to your needs.
